Smart Home App
Display current measurement data
Display environmental data
With Button Max you can use an optimized version of your myStrom app, with family-friendly navigation using the four corner buttons.
Button Max synchronizes all devices and scenes, certain functions and the language settings of the myStrom App*. During installation you also select a display focus such as “Rooms” or “Current measurement data”.
Button Max allows an amazing number of interactions such as …turning switches on and off.
…switching lights on/off, dimming, tinting and colouring – including dingz and modulo.
…controlling SONOS and IKEA SYMFONISK speakers.*
…controlling lights, blinds and switches from Philips Hue, IKEA TRÅDFRI and Shelly (requires myStrom Home).
Button Max displays the total power consumption of all devices and the total power generation of mini solar power systems as totals, as well as the temperature and humidity that it measures.
With Button Max you can activate myStrom Home Guard at the touch of a button, including a sixty-second countdown.
Integrate Button Max into your proprietary Smart Home solution with the Button Max Tool for Mac and PC.
|WiFi Button||WiFi Button Plus||WiFi Button Max|
|Control devices & scenes||few||some||all|
|Detailed device control|
|Graphical user interface|
|Programmable / REST API|
Place it wherever you want
2. Open the myStrom App
Set up a free myStrom account
Follow the steps in the myStrom app.
myStrom WiFi Button Max
IEEE 802.11n / 2.4 GHz (1)
53 x 53 x 13 mm
Dot (white, green, red)
Operate using the four corner buttons with support for short, double, and long pressure.
200 x 200 px e-paper display. The display can be rotated 180 degrees for operation on the charging cable (setting in the myStrom app).
Integrated battery pack (rechargeable via USB-C)*
Yes / magnetic
0 – 40 °C • 0 – 85% humidity (non condensing) (2)
10 – 60 °C • 5 – 90% humidity (non condensing)
Security & EMI
2 years (hardware)
WiFi Button Max • manual • charging cable (USB)
– WiFi router/gateway (constant WiFi and Internet connection, WPA2-Enterprise/Raduis not supported)
– myStrom Account
– myStrom App
(1) Data throughput and installation range can vary. Network conditions and climatic factors, incl. data volume/traffic, construction/structure as well as used materials can influence the data throughput as well as the installation range.
(2) Only suitable for indoor use – keep devices away from humidity.
*According to the Battery Act, we as a dealer are obliged to inform customers about the following: you are legally obliged to return batteries, including rechargeable batteries. You can return them to our sales office, a municipal collection point or to local retailers after use. Pollutant-containing batteries are marked with a corresponding symbol consisting of a crossed-out wheelie bin as well as the chemical symbol (Cd, Hg or Pb) of the heavy metal that determines its classification as a pollutant.
The clever little buttons.

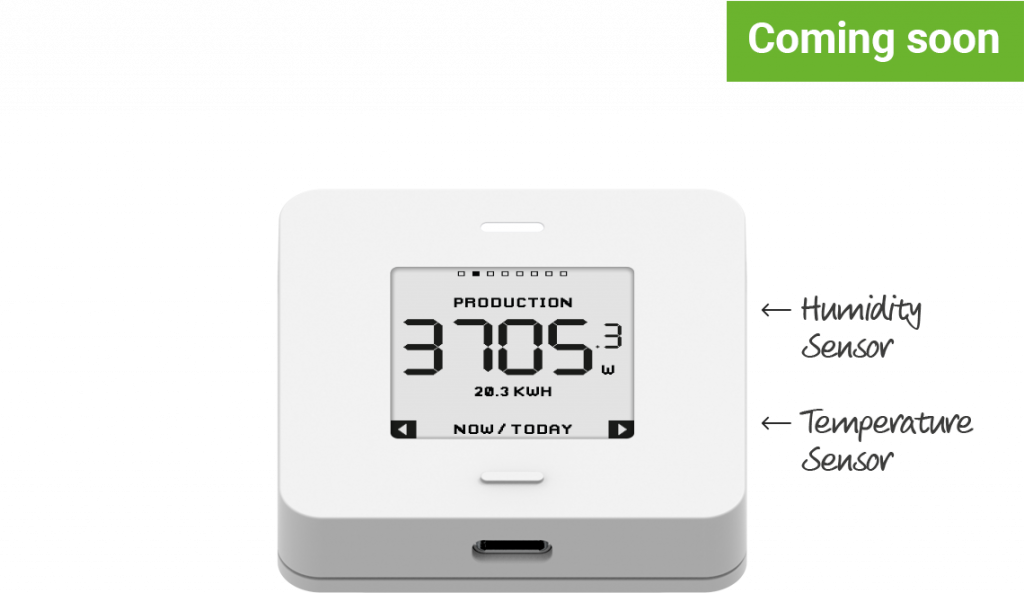

Button Max for Solar Manager. Displays consumption and production data. Allows you to set the energy flows and switch SM integrated devices. Sensors for temperature and humidity. Designed in Switzerland.
The versatile button with 4 controls, each with 3 functions, for controlling devices, scenes and features, even without an app. Includes sensors for temperature and humidity. Designed in Switzerland.
Shipping time: 3-5 days for standard shipping in Switzerland, information about delivery times for express delivery, delivery to other countries and the calculation of delivery times can be found here on the payment and shipping conditions page. The statutory liability for defects and a 14-day cancellation policy shall apply to all goods.
Order without login or checkout? Direct connection to your logistics? Being where it counts? Button Max is the perfect enabler for your services.
